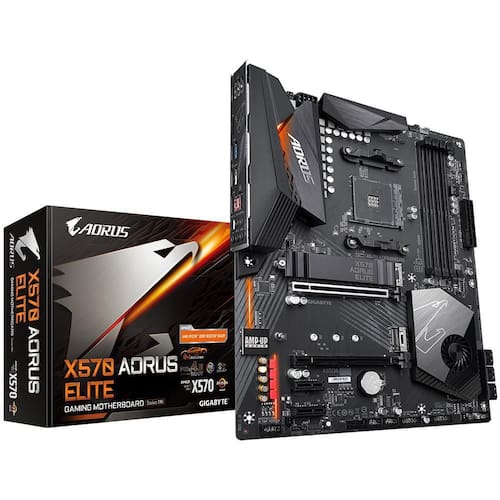

Placa Mae Gigabyte X570 Aorus Elite Amd Am4 Atx Ddr4 Hdmi

Gigabyte x570 baseadas no chipset amd x570 fornecem suporte total para os processadores amd ryzen tm da 3ª geração. O novo design é um testemunho da dedicação da gigabyte à qualidade do design. A gigabyte x570 oferecem uma rica lista de características tais como suporte para interfaces pcie 4.0 e usb type-c tm .
Desempenho aorus
Para liberar todo o potencial da 3ª geração do processador amd ryzen tm , a placa-mãe requer o melhor design de energia da cpu. Com os componentes de melhor qualidade e a capacidade de design da r & d da gigabyte.
- especificações:
- cpu
Amd socket am4, support for: 3rd generation amd ryzen tm processors/ 2nd generation amd ryzen tm processors/
2nd generation amd ryzen tm with radeon tm vega graphics processors/ amd ryzen tm with radeon tm vega graphics processors
- chipset
Amd x570
- memória
3rd generation amd ryzen tm processors:
Support for ddr4 4000 o.C. / 3200 / 2933 / 2667 / 2400 / 2133 mhz memory modules
2nd generation amd ryzen tm processors/amd ryzen tm with radeon tm vega graphics processors:
Support for ddr4 3200 o.C. / 2933 / 2667 / 2400 / 2133 mhz memory modules
4 x ddr4 dimm sockets supporting up to 128 gb 32 gb single dimm capacity of system memory
Dual channel memory architecture
Support for ecc un-buffered dimm 1rx8/2rx8 memory modules
Support for non-ecc un-buffered dimm 1rx8/2rx8/1rx16 memory modules
Support for extreme memory profile xmp memory modules
- gráficos onboard
Integrated graphics processor:
1 x hdmi port, supporting a maximum resolution of 4096x216060 hz
Maximum shared memory of 16 gb
- áudio
Realtek® alc1200 codec
High definition audio
2/4/5.1-channel
Support for s/pdif out
- lan
Intel® gbe lan chip 10/100/1000 mbit
- slots de expansão
Integrated in the cpu pciex16 :
3rd generation amd ryzen tm processors:
1 x pci express x16 slot, supporting pcie 4.0 and running at x16
2nd generation amd ryzen tm processors:
1 x pci express x16 slot, supporting pcie 3.0 and running at x16
2nd generation amd ryzen tm with radeon tm vega graphics processors/amd ryzen tm with radeon tm vega graphics processors:
1 x pci express x16 slot, supporting pcie 3.0 and running at x8
Integrated in the chipset pciex4/pciex1 :
1 x pci express x16 slot, supporting pcie 4.0/3.0 and running at x4 pciex4
2 x pci express x1 slots, supporting pcie 4.0/3.0
Tecnologia multi-graphics
Support for amd quad-gpu crossfire tm and 2-way amd crossfire tm technologies
Note: for 3rd generation amd ryzen tm processors/2nd generation amd ryzen tm processors only.
- interface de armazenamento
Integrated in the cpu m2a_socket :
3rd generation amd ryzen tm processors:
1 x m.2 connector socket 3, m key, type 2242/2260/2280/22110 sata and pcie 4.0 x4/x2 ssd support
2nd generation amd ryzen tm processors/2nd generation amd ryzen tm with radeon tm vega graphics processors/amd ryzen tm with radeon tm vega graphics processors:
1 x m.2 connector socket 3, m key, type 2242/2260/2280/22110 sata and pcie 3.0 x4/x2 ssd support
Integrated in the chipset m2b_socket :
1 x m.2 connector socket 3, m key, type 2242/2260/2280/22110 sata and pcie 4.0/3.0 x4/x2 ssd support
6 x sata 6gb/s connectors
Support for raid 0, raid 1, and raid 10
- usb
Integrated in the cpu:
4 x usb 3.2 gen 1 ports on the back panel
- chipset:
1 x usb type-c tm port with usb 3.2 gen 2 support, available through the internal usb header
2 x usb 3.2 gen 2 type-a ports red on the back panel
4 x usb 3.2 gen 1 ports available through the internal usb headers
Chipset+2 usb 2.0 hubs:
8 x usb 2.0/1.1 ports 4 ports on the back panel, 4 ports available through the internal usb headers
- conectores painel traseiro
4 x usb 2.0/1.1 ports
1 x hdmi port
4 x usb 3.2 gen 1 ports
2 x usb 3.2 gen 2 type-a ports red
1 x rj-45 port
1 x optical s/pdif out connector
5 x audio jacks
- form factor
Atx form factor; 30.5cm x 24.4cm
Marca: Não Informado
Ean: 4719331806439
