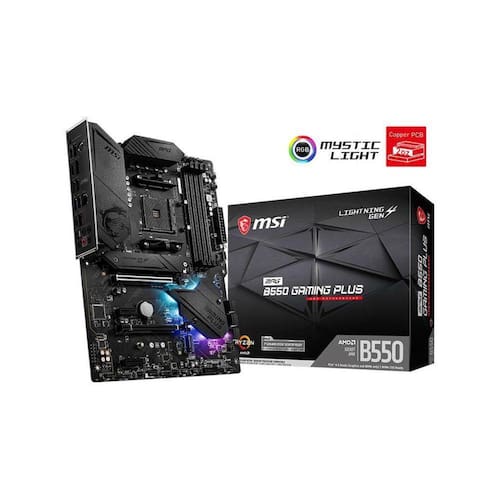

Placa Mãe Msi Mpg B550 Gaming Plus Socket Amd Am4 Atx Ddr4

Cpu
Supports amd ryzen 5000 & 3000 series desktop processors not compatible with amd ryzen 5 3400g & ryzen 3 3200g and amd ryzen 4000 g-series desktop processors

See supported processors

Chipset
Amd b550 chipset

Memory
4x ddr4 memory slots, support up to 128gb 1
Supports ddr4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 mhz by jedec
Supports ddr4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ mhz by a-xmp oc mode
1dpc 1r max speed 4400 mhz
1dpc 2r max speed 3866 mhz
2dpc 1r max speed 4000 mhz
2dpc 2r max speed 3600 mhz
Dual channel memory architecture
Supports non-ecc udimm memory
Supports ecc udimm memory non-ecc mode
Supports un-buffered memory

Expansion slots
1x pcie 4.0/ 3.0 x16 slot pcie1 1
1x pcie 3.0 x16 slot pcie3 , supports x4 speed 2
2x pcie 3.0 x1 slots
Onboard graphics
1x hdmi 2.1 port, supports a maximum resolution of 4096x2160 60hz 1 2
Support hdcp 1.4 & 2.3
1x displayport, supports a maximum resolution of 4096x2160 60hz 1
Maximum shared memory of 16 gb
Available for the processor with integrated graphics.Graphics specifications may vary depending on the cpu installed.
Multi-gpu
Supports 2-way amd crossfire technology
Storage
Amd b550 chipset

6x sata 6gb/s ports
2x m.2 slots key m
M21 slot from amd processor
Supports pcie 4.0/ 3.0 x4 1
Supports sata 6gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M22 slot from amd b550 chipset
Supports pcie 3.0x4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
Raid
Supports raid 0, raid 1 and raid 10 for sata storage devices
Supports raid 0 and raid 1 for m.2 nvme storage devices
Usb
Amd b550 chipset

3x usb 3.2 gen 1 5gbps ports 1 type-c internal connector, and 2 ports are available through the internal usb 3.2 gen 1 5gbps connector
8x usb 2.0 ports 4 type-a ports on the back panel, 4 ports through the internal usb 2.0 connectors
Amd processor

2x usb 3.2 gen 2 10gbps ports 1 type-c port and 1 type-a port on the back panel
2x usb 3.2 gen 1 5gbps type-a ports on the back panel
Audio
Realtek alc892/alc897 codec

7.1-channel high definition audio
Supports s/pdif output
Lan
1x realtek 8111h gigabit lan controller
Internal connectors
1x 24-pin atx main power connector
1x 8-pin atx 12v power connector
6x sata 6gb/s connectors
2x m.2 slots m-key
1x usb 3.2 gen 1 5gbps type-c port
1x usb 3.2 gen 1 5gbps connector supports additional 2 usb 3.2 gen 1 5gbps ports
2x usb 2.0 connectors supports additional 4 usb 2.0 ports
1x 4-pin cpu fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusion connector
1x 4-pin rgb led connector
2x 3-pin rainbow led connectors
1xtpm module connector
1x clear cmos jumper
Back panel ports
Ps/2 combo port
Displayport
Lan port
Usb 3.2 gen 2 10gbps type-a
Hd audio connectors
Flash bios button
Usb 2.0
Hdmi
Usb 2.0
Usb 3.2 gen 1 5gbps type-a
Usb 3.2 gen 2 10gbps type-c
Optical s/pdif out
Mpg b550 gaming plus
Led features
1x ez led control switch
4x ez debug led
I/o controller
Nuvoton nct6687-r controller chip

Hardware monitor
Cpu/ system/ chipset temperature detection
Cpu/ system/ pump fan speed detection
Cpu/ system/ pump fan speed control
Dimensions
Atx form factor
12 in. X 9.6 in. 30.5 cm x 24.4 cm
Mounting
9 mounting holes
Ean: 4719072731885
